OpenOrienteering::XMLFileImporter Class Reference

Map importer for the xml based map format. More...

#include <xml_file_format_p.h>

Inheritance diagram for OpenOrienteering::XMLFileImporter:

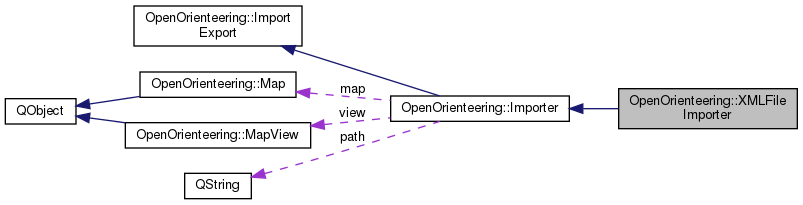

Collaboration diagram for OpenOrienteering::XMLFileImporter:

Public Member Functions
	XMLFileImporter (const QString &path, Map *map, MapView *view)
	XMLFileImporter ()=delete
	XMLFileImporter (const XMLFileImporter &)=delete
	XMLFileImporter (XMLFileImporter &&)=delete
	~XMLFileImporter () override
XMLFileImporter &	operator= (const XMLFileImporter &)=delete
XMLFileImporter &	operator= (XMLFileImporter &&)=delete
Public Member Functions inherited from OpenOrienteering::Importer
	Importer (const QString &path, Map *map, MapView *view)
	Creates a new Importer with the given input path, map, and view. More...
	~Importer () override
	Destroys this Importer. More...
bool	loadSymbolsOnly () const noexcept
	Returns true if only symbols (and colors) are to be imported. More...
void	setLoadSymbolsOnly (bool value)
	If set to true, importers shall import only symbols (and colors). More...
bool	doImport ()
	Imports the map and view. More...
Public Member Functions inherited from OpenOrienteering::ImportExport
	ImportExport (QIODevice *device=nullptr)
	Creates a new importer or exporter with the given IO device. More...
	ImportExport (const ImportExport &)=delete
	ImportExport (ImportExport &&)=delete
virtual	~ImportExport ()
	Destroys an importer or exporter. More...
virtual bool	supportsQIODevice () const noexcept
	Returns true when the importer/exporter supports QIODevice. More...
QIODevice *	device () const noexcept
	Returns the input device if it has been set or created. More...
void	setDevice (QIODevice *device)
	Sets a custom input device to be used for import. More...
void	setOption (const QString &name, const QVariant &value)
	Sets an option in this importer or exporter. More...
QVariant	option (const QString &name) const
	Retrieves the value of an option in this instance. More...
void	addWarning (const QString &str)
	Adds a string to the current list of warnings. More...
const std::vector< QString > &	warnings () const noexcept
	Returns the current list of warnings collected by this object. More...

Protected Member Functions
bool	importImplementation () override
	Actual implementation of the import. More...
void	importElements ()
void	handleBarrier (const std::function< void()> &reader)
void	addWarningUnsupportedElement ()
void	importMapNotes ()
void	importGeoreferencing ()
void	importColors ()
void	importSymbols ()
void	importMapParts ()
void	importTemplates ()
void	importView ()
void	importPrint ()
void	importUndo ()
void	importRedo ()
Protected Member Functions inherited from OpenOrienteering::Importer
virtual void	prepare ()
	Event handler called from doImport() to prepare the import process. More...
virtual void	validate ()
	Event handler called from doImport() to complete to postprocess imported data. More...
virtual void	importFailed ()
	Event handler called from doImport() to complete to cleanup a failed import attempt. More...

Additional Inherited Members
Protected Attributes inherited from OpenOrienteering::Importer
const QString	path
	The input path. More...
Map *const	map
	The Map to import or export. More...
MapView *const	view
	The MapView to import or export. More...

Detailed Description

Map importer for the xml based map format.

Constructor & Destructor Documentation

XMLFileImporter() [1/4]

OpenOrienteering::XMLFileImporter::XMLFileImporter	(	const QString &	path,
		Map *	map,
		MapView *	view
	)

XMLFileImporter() [2/4]

OpenOrienteering::XMLFileImporter::XMLFileImporter ( )

delete

XMLFileImporter() [3/4]

OpenOrienteering::XMLFileImporter::XMLFileImporter ( const XMLFileImporter &  )

delete

XMLFileImporter() [4/4]

OpenOrienteering::XMLFileImporter::XMLFileImporter ( XMLFileImporter &&  )

delete

~XMLFileImporter()

OpenOrienteering::XMLFileImporter::~XMLFileImporter ( )

overridedefault

Member Function Documentation

addWarningUnsupportedElement()

void OpenOrienteering::XMLFileImporter::addWarningUnsupportedElement ( )

protected

handleBarrier()

void OpenOrienteering::XMLFileImporter::handleBarrier ( const std::function< void()> &  reader )

protected

importColors()

void OpenOrienteering::XMLFileImporter::importColors ( )

protected

importElements()

void OpenOrienteering::XMLFileImporter::importElements ( )

protected

importGeoreferencing()

void OpenOrienteering::XMLFileImporter::importGeoreferencing ( )

protected

importImplementation()

bool OpenOrienteering::XMLFileImporter::importImplementation ( )

overrideprotectedvirtual

Actual implementation of the import.

This function shall read the input and populate the map and view from it. Importers which support input from QIODevice should use the device(). They must not open or close this device.

If information might be lost in the process, a message shall be recorded by calling addWarning() with a translated, useful description of the issue. If a fatal error is encountered, then this method may either throw an exception, or log an error message with addWarning() and return false. The line between errors and warnings is somewhat of a judgement call on the part of the author, but generally an Importer should not succeed unless the map is populated sufficiently to be useful.

Implements OpenOrienteering::Importer.

importMapNotes()

void OpenOrienteering::XMLFileImporter::importMapNotes ( )

protected

importMapParts()

void OpenOrienteering::XMLFileImporter::importMapParts ( )

protected

importPrint()

void OpenOrienteering::XMLFileImporter::importPrint ( )

protected

importRedo()

void OpenOrienteering::XMLFileImporter::importRedo ( )

protected

importSymbols()

void OpenOrienteering::XMLFileImporter::importSymbols ( )

protected

importTemplates()

void OpenOrienteering::XMLFileImporter::importTemplates ( )

protected

importUndo()

void OpenOrienteering::XMLFileImporter::importUndo ( )

protected

importView()

void OpenOrienteering::XMLFileImporter::importView ( )

protected

operator=() [1/2]

XMLFileImporter& OpenOrienteering::XMLFileImporter::operator= ( const XMLFileImporter &  )

delete

operator=() [2/2]

XMLFileImporter& OpenOrienteering::XMLFileImporter::operator= ( XMLFileImporter &&  )

delete

---

The documentation for this class was generated from the following files:

• src/fileformats/xml_file_format_p.h (6261473 on 3 Oct 2019)
• src/fileformats/xml_file_format.cpp (52d13fd on 3 Oct 2019)
