OpenOrienteering::XMLFileExporter Class Reference

Map exporter for the xml based map format. More...

#include <xml_file_format_p.h>

Inheritance diagram for OpenOrienteering::XMLFileExporter:

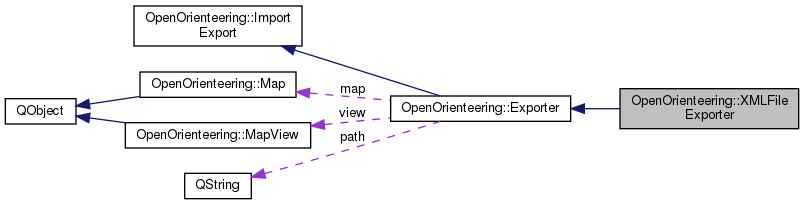

Collaboration diagram for OpenOrienteering::XMLFileExporter:

Public Member Functions
	XMLFileExporter (const QString &path, const Map *map, const MapView *view)
	XMLFileExporter ()=delete
	XMLFileExporter (const XMLFileExporter &)=delete
	XMLFileExporter (XMLFileExporter &&)=delete
	~XMLFileExporter () override
XMLFileExporter &	operator= (const XMLFileExporter &)=delete
XMLFileExporter &	operator= (XMLFileExporter &&)=delete
Public Member Functions inherited from OpenOrienteering::Exporter
	Exporter (const QString &path, const Map *map, const MapView *view)
	Creates a new Exporter with the given path, map, and view. More...
	~Exporter () override
	Destroys the current Exporter. More...
bool	doExport ()
	Exports the map and view. More...
Public Member Functions inherited from OpenOrienteering::ImportExport
	ImportExport (QIODevice *device=nullptr)
	Creates a new importer or exporter with the given IO device. More...
	ImportExport (const ImportExport &)=delete
	ImportExport (ImportExport &&)=delete
virtual	~ImportExport ()
	Destroys an importer or exporter. More...
virtual bool	supportsQIODevice () const noexcept
	Returns true when the importer/exporter supports QIODevice. More...
QIODevice *	device () const noexcept
	Returns the input device if it has been set or created. More...
void	setDevice (QIODevice *device)
	Sets a custom input device to be used for import. More...
void	setOption (const QString &name, const QVariant &value)
	Sets an option in this importer or exporter. More...
QVariant	option (const QString &name) const
	Retrieves the value of an option in this instance. More...
void	addWarning (const QString &str)
	Adds a string to the current list of warnings. More...
const std::vector< QString > &	warnings () const noexcept
	Returns the current list of warnings collected by this object. More...

Protected Member Functions
bool	exportImplementation () override
	Actual implementation of the export. More...
void	exportGeoreferencing ()
void	exportColors ()
void	exportSymbols ()
void	exportMapParts ()
void	exportTemplates ()
void	exportView ()
void	exportPrint ()
void	exportUndo ()
void	exportRedo ()

Additional Inherited Members
Protected Attributes inherited from OpenOrienteering::Exporter
const QString	path
	The output path. More...
const Map *const	map
	The Map to import or export. More...
const MapView *const	view
	The MapView to import or export. More...

Detailed Description

Map exporter for the xml based map format.

Constructor & Destructor Documentation

XMLFileExporter() [1/4]

OpenOrienteering::XMLFileExporter::XMLFileExporter	(	const QString &	path,
		const Map *	map,
		const MapView *	view
	)

XMLFileExporter() [2/4]

OpenOrienteering::XMLFileExporter::XMLFileExporter ( )

delete

XMLFileExporter() [3/4]

OpenOrienteering::XMLFileExporter::XMLFileExporter ( const XMLFileExporter &  )

delete

XMLFileExporter() [4/4]

OpenOrienteering::XMLFileExporter::XMLFileExporter ( XMLFileExporter &&  )

delete

~XMLFileExporter()

OpenOrienteering::XMLFileExporter::~XMLFileExporter ( )

overridedefault

Member Function Documentation

exportColors()

void OpenOrienteering::XMLFileExporter::exportColors ( )

protected

exportGeoreferencing()

void OpenOrienteering::XMLFileExporter::exportGeoreferencing ( )

protected

exportImplementation()

bool OpenOrienteering::XMLFileExporter::exportImplementation ( )

overrideprotectedvirtual

Actual implementation of the export.

Exporters which support input from QIODevice shall use the device(). They must not open or close the device.

If information might be lost in the export, a message shall be recorded by calling addWarning() with a translated, useful description of the issue. If a fatal error is encountered, then this method may either throw an exception, or log an error message with addWarning() and return false.

There is no default implementation.

Implements OpenOrienteering::Exporter.

exportMapParts()

void OpenOrienteering::XMLFileExporter::exportMapParts ( )

protected

exportPrint()

void OpenOrienteering::XMLFileExporter::exportPrint ( )

protected

exportRedo()

void OpenOrienteering::XMLFileExporter::exportRedo ( )

protected

exportSymbols()

void OpenOrienteering::XMLFileExporter::exportSymbols ( )

protected

exportTemplates()

void OpenOrienteering::XMLFileExporter::exportTemplates ( )

protected

Todo:

Update the relative paths in memory when saving to another directory. Otherwise opening templates in the reloaded saved map may behave different from the current map in memory.

exportUndo()

void OpenOrienteering::XMLFileExporter::exportUndo ( )

protected

exportView()

void OpenOrienteering::XMLFileExporter::exportView ( )

protected

operator=() [1/2]

XMLFileExporter& OpenOrienteering::XMLFileExporter::operator= ( const XMLFileExporter &  )

delete

operator=() [2/2]

XMLFileExporter& OpenOrienteering::XMLFileExporter::operator= ( XMLFileExporter &&  )

delete

---

The documentation for this class was generated from the following files:

• src/fileformats/xml_file_format_p.h (6261473 on 3 Oct 2019)
• src/fileformats/xml_file_format.cpp (52d13fd on 3 Oct 2019)
