OpenOrienteering::ObjectQuery Class Reference

Utility to match objects based on tag values. More...

#include <object_query.h>

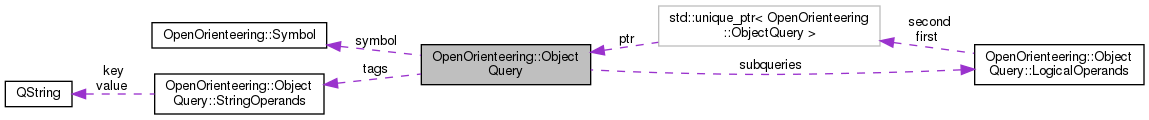

Collaboration diagram for OpenOrienteering::ObjectQuery:

Classes
struct	LogicalOperands
struct	StringOperands

Public Types
enum	Operator {   OperatorAnd = 1, OperatorOr = 2, OperatorIs = 16, OperatorIsNot = 17,   OperatorContains = 18, OperatorSearch = 19, OperatorObjectText = 20, OperatorSymbol = 32,   OperatorInvalid = 0 }

Public Member Functions
	ObjectQuery () noexcept
	ObjectQuery (const ObjectQuery &query)
	ObjectQuery (ObjectQuery &&proto) noexcept
ObjectQuery &	operator= (const ObjectQuery &proto) noexcept
ObjectQuery &	operator= (ObjectQuery &&proto) noexcept
	~ObjectQuery ()
	operator bool () const noexcept
	Returns true if the query is valid. More...
	ObjectQuery (const QString &key, Operator op, const QString &value)
	Constructs a query for a key and value. More...
	ObjectQuery (Operator op, const QString &value)
	Constructs a query for a value. More...
	ObjectQuery (const ObjectQuery &first, Operator op, const ObjectQuery &second)
	Constructs a query which connects two sub-queries. More...
	ObjectQuery (ObjectQuery &&first, Operator op, ObjectQuery &&second) noexcept
	Constructs a query which connects two sub-queries. More...
	ObjectQuery (const Symbol *symbol) noexcept
	Constructs a query for a particular symbol. More...
Operator	getOperator () const noexcept
	Returns the underlying operator. More...
bool	operator() (const Object *object) const
	Evaluates this query on the given object and returns whether it matches. More...
const LogicalOperands *	logicalOperands () const
	Returns the operands of logical query operations. More...
const StringOperands *	tagOperands () const
	Returns the operands of logical query operations. More...
const Symbol *	symbolOperand () const
	Returns the operand of symbol operations. More...
QString	toString () const
	Pretty print the query. More...

Static Public Member Functions
static QString	labelFor (Operator op)
	Returns a short label for the operator which can be used in the user interface. More...

Friends
bool	operator== (const ObjectQuery &lhs, const ObjectQuery &rhs)

Detailed Description

Utility to match objects based on tag values.

This class can be used with value semantics. It can be move-constructed and move-assigned in O(1). Normal copy-construction and assignment may involve expensive copying of the expression tree.

OperatorAnd and OperatorOr evaluate the left argument first. When constructing complex queries, left sub-query chains should be kept short in order to benefit from short circuiting the evaluation of these logical operators after evaluation of the left argument.

Member Enumeration Documentation

Operator

enum OpenOrienteering::ObjectQuery::Operator

Enumerator
OperatorAnd	And-chains two object queries.
OperatorOr	Or-chains two object queries.
OperatorIs	Tests an existing tag for equality with the given value (case-sensitive)
OperatorIsNot	Tests an existing tag for inequality with the given value (case-sensitive)
OperatorContains	Tests an existing tag for containing the given value (case-sensitive)
OperatorSearch	Tests if the symbol name, a tag key or a tag value contains the given value (case-insensitive)
OperatorObjectText	Text object content (case-insensitive)
OperatorSymbol	Test the symbol for equality.
OperatorInvalid	Marks an invalid query.

Constructor & Destructor Documentation

ObjectQuery() [1/8]

OpenOrienteering::ObjectQuery::ObjectQuery ( )

noexcept

ObjectQuery() [2/8]

OpenOrienteering::ObjectQuery::ObjectQuery ( const ObjectQuery &  query )

explicit

ObjectQuery() [3/8]

OpenOrienteering::ObjectQuery::ObjectQuery ( ObjectQuery &&  proto )

noexcept

~ObjectQuery()

OpenOrienteering::ObjectQuery::~ObjectQuery

(

)

ObjectQuery() [4/8]

OpenOrienteering::ObjectQuery::ObjectQuery	(	const QString &	key,
		ObjectQuery::Operator	op,
		const QString &	value
	)

Constructs a query for a key and value.

ObjectQuery() [5/8]

OpenOrienteering::ObjectQuery::ObjectQuery	(	ObjectQuery::Operator	op,
		const QString &	value
	)

Constructs a query for a value.

Valid for OperatorSearch.

ObjectQuery() [6/8]

OpenOrienteering::ObjectQuery::ObjectQuery	(	const ObjectQuery &	first,
		ObjectQuery::Operator	op,
		const ObjectQuery &	second
	)

Constructs a query which connects two sub-queries.

The sub-queries are copied.

ObjectQuery() [7/8]

OpenOrienteering::ObjectQuery::ObjectQuery ( ObjectQuery &&  first, ObjectQuery::Operator  op, ObjectQuery &&  second  )

noexcept

Constructs a query which connects two sub-queries.

ObjectQuery() [8/8]

OpenOrienteering::ObjectQuery::ObjectQuery ( const Symbol *  symbol )

noexcept

Constructs a query for a particular symbol.

Member Function Documentation

getOperator()

Operator OpenOrienteering::ObjectQuery::getOperator ( ) const

inlinenoexcept

Returns the underlying operator.

labelFor()

QString OpenOrienteering::ObjectQuery::labelFor ( ObjectQuery::Operator  op )

static

Returns a short label for the operator which can be used in the user interface.

logicalOperands()

const ObjectQuery::LogicalOperands * OpenOrienteering::ObjectQuery::logicalOperands

(

)

const

Returns the operands of logical query operations.

operator bool()

OpenOrienteering::ObjectQuery::operator bool ( ) const

inlinenoexcept

Returns true if the query is valid.

operator()()

bool OpenOrienteering::ObjectQuery::operator()

(

const Object *

object

)

const

Evaluates this query on the given object and returns whether it matches.

operator=() [1/2]

ObjectQuery & OpenOrienteering::ObjectQuery::operator= ( const ObjectQuery &  proto )

noexcept

operator=() [2/2]

ObjectQuery & OpenOrienteering::ObjectQuery::operator= ( ObjectQuery &&  proto )

noexcept

symbolOperand()

const Symbol * OpenOrienteering::ObjectQuery::symbolOperand

(

)

const

Returns the operand of symbol operations.

tagOperands()

const ObjectQuery::StringOperands * OpenOrienteering::ObjectQuery::tagOperands

(

)

const

Returns the operands of logical query operations.

toString()

QString OpenOrienteering::ObjectQuery::toString

(

)

const

Pretty print the query.

The output is meant to be formal language, for possible parsing.

Friends And Related Function Documentation

operator==

bool operator== ( const ObjectQuery &  lhs, const ObjectQuery &  rhs  )

friend

Member Data Documentation

subqueries

LogicalOperands OpenOrienteering::ObjectQuery::subqueries

symbol

SymbolOperand OpenOrienteering::ObjectQuery::symbol

tags

StringOperands OpenOrienteering::ObjectQuery::tags

---

The documentation for this class was generated from the following files:

• src/core/objects/object_query.h (9169056 on 6 Feb 2019)
• src/core/objects/object_query.cpp (c0c3bc8 on 7 Oct 2019)
