Base class for undo steps which add new objects to the map. More...

#include <object_undo.h>

Inheritance diagram for OpenOrienteering::ObjectCreatingUndoStep:

[legend]

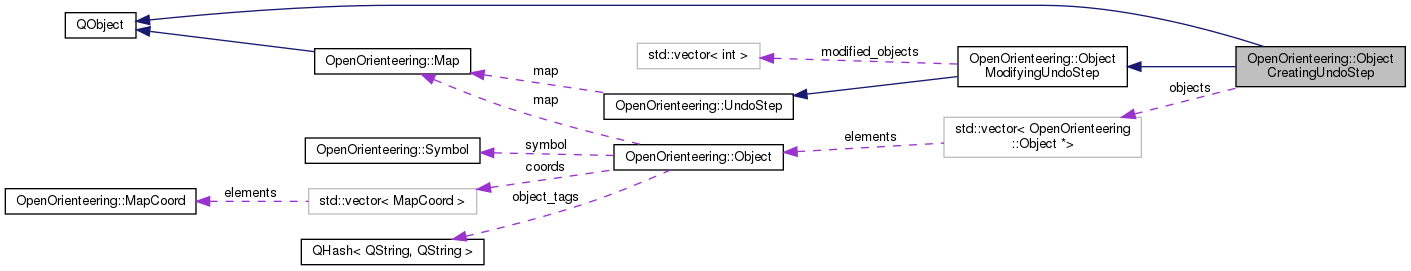

Collaboration diagram for OpenOrienteering::ObjectCreatingUndoStep:

[legend]

Public Slots
virtual void	symbolChanged (int pos, const OpenOrienteering::Symbol new_symbol, const OpenOrienteering::Symbol old_symbol)
	Adapts the symbol pointers of objects referencing the changed symbol. More...

virtual void	symbolDeleted (int pos, const OpenOrienteering::Symbol *old_symbol)
	Invalidates the undo step if a contained object references the deleted symbol. More...

Public Member Functions
	ObjectCreatingUndoStep (Type type, Map *map)
	Constructor. More...

	~ObjectCreatingUndoStep () override
	Destructor. More...

bool	isValid () const override
	Returns true if the step can still be undone. More...

void	addObject (int index) override
	Must not be called. More...

void	addObject (int existing_index, Object *object)
	Adds an object to the undo step with given index. More...

void	addObject (Object existing, Object object)
	Adds an object to the undo step with the index of the existing object. More...

void	getModifiedObjects (int, ObjectSet &) const override
	Adds the list of the step's modified objects to the container provided by out. More...

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Public Member Functions inherited from OpenOrienteering::ObjectModifyingUndoStep
	ObjectModifyingUndoStep (Type type, Map *map)
	Creates an ObjectModifyingUndoStep for the given map and its current part. More...

	ObjectModifyingUndoStep (Type type, Map *map, int part_index)
	Creates an ObjectModifyingUndoStep for the given map and part. More...

	~ObjectModifyingUndoStep () override
	Destructor. More...

int	getPartIndex () const
	Returns the index of the map part modified by this undo step. More...

void	setPartIndex (int part_index)
	Set the index of the map part modified by this undo step. More...

virtual bool	isEmpty () const
	Returns true if no objects are modified by this undo step. More...

bool	getModifiedParts (PartSet &out) const override
	Adds the the step's modified part to the container provided by out. More...

Public Member Functions inherited from OpenOrienteering::UndoStep
	UndoStep (Type type, Map *map)
	Constructs an undo step having the given type. More...

	UndoStep (const UndoStep &)=delete

	UndoStep (UndoStep &&)=delete

virtual	~UndoStep ()
	Destructor. More...

UndoStep &	operator= (const UndoStep &)=delete

UndoStep &	operator= (UndoStep &&)=delete

Type	getType () const
	Returns the type of the undo step. More...

virtual UndoStep *	undo ()=0
	Undoes the action and returns a new UndoStep. More...

void	save (QXmlStreamWriter &xml) const
	Saves the undo step to the stream in xml format. More...

Protected Member Functions
void	saveImpl (QXmlStreamWriter &xml) const override
	Saves undo properties to the the xml stream. More...

void	loadImpl (QXmlStreamReader &xml, SymbolDictionary &symbol_dict) override
	Loads undo properties from the the xml stream. More...

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Protected Member Functions inherited from OpenOrienteering::ObjectModifyingUndoStep
virtual void	saveObject (XmlElementWriter &xml, int index) const
	Saves object details to the the xml stream. More...

virtual void	loadObject (XmlElementReader &xml, int index)
	Loads object details from the the xml stream. More...

Protected Attributes
std::vector< Object * >	objects
	A list of object instance which are currently not part of the map. More...

bool	valid
	A flag indicating whether this step is still valid. More...

Protected Attributes inherited from OpenOrienteering::ObjectModifyingUndoStep
ObjectList	modified_objects
	Indices of the existing objects that are modified by this step. More...

Protected Attributes inherited from OpenOrienteering::UndoStep
Type const	type
	The type of the undo step. More...

Map *const	map
	The map this undo step belongs. More...

Additional Inherited Members
Public Types inherited from OpenOrienteering::UndoStep
enum	Type { ReplaceObjectsUndoStepType = 0, DeleteObjectsUndoStepType = 1, AddObjectsUndoStepType = 2, SwitchSymbolUndoStepType = 3, SwitchDashesUndoStepType = 4, CombinedUndoStepType = 5, ValidNoOpUndoStepType = 6, ObjectTagsUndoStepType = 7, MapPartUndoStepType = 8, SwitchPartUndoStepTypeV0 = 9, SwitchPartUndoStepType = 10, InvalidUndoStepType = 999 }
	Types of undo steps for identification. More...

typedef std::set< int >	PartSet
	A set of integers referring to parts. More...

typedef std::set< Object * >	ObjectSet
	A set of pointers to objects. More...

Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Static Public Member Functions inherited from OpenOrienteering::UndoStep
static UndoStep *	getUndoStepForType (Type type, Map *map)
	Constructs an undo step of the given type. More...

static UndoStep *	load (QXmlStreamReader &xml, Map *map, SymbolDictionary &symbol_dict)
	Loads the undo step from the stream in xml format. More...

Public Attributes inherited from QObject
typedef	QObjectList

Protected Types inherited from OpenOrienteering::ObjectModifyingUndoStep
typedef std::vector< int >	ObjectList
	A list of indices referring to objects in a map part. More...

Properties inherited from QObject
	objectName

Detailed Description

Base class for undo steps which add new objects to the map.

Takes care of correctly reacting to symbol changes in the map, which are not covered by the undo / redo system.

Constructor & Destructor Documentation

◆ ObjectCreatingUndoStep()

OpenOrienteering::ObjectCreatingUndoStep::ObjectCreatingUndoStep	(	Type	type,
		Map *	map
	)

Constructor.

◆ ~ObjectCreatingUndoStep()

OpenOrienteering::ObjectCreatingUndoStep::~ObjectCreatingUndoStep ( )

override

Destructor.

Member Function Documentation

◆ addObject() [1/3]

void OpenOrienteering::ObjectCreatingUndoStep::addObject ( int index )

overridevirtual

Must not be called.

Use the two-parameter signatures instead of this one.

Does nothing in release builds. Aborts the program in non-release builds. Reimplemented from ObjectModifyingUndoStep::addObject()).

Reimplemented from OpenOrienteering::ObjectModifyingUndoStep.

◆ addObject() [2/3]

void OpenOrienteering::ObjectCreatingUndoStep::addObject	(	int	existing_index,
		Object *	object
	)

Adds an object to the undo step with given index.

◆ addObject() [3/3]

void OpenOrienteering::ObjectCreatingUndoStep::addObject	(	Object *	existing,
		Object *	object
	)

Adds an object to the undo step with the index of the existing object.

◆ getModifiedObjects()

void OpenOrienteering::ObjectCreatingUndoStep::getModifiedObjects	(	int	part_index,
		ObjectSet &	out
	)		const

overridevirtual

Adds the list of the step's modified objects to the container provided by out.

Reimplemented from OpenOrienteering::ObjectModifyingUndoStep.

◆ isValid()

bool OpenOrienteering::ObjectCreatingUndoStep::isValid ( ) const

overridevirtual

Returns true if the step can still be undone.

The value returned by this function is taken from the "valid" member variable.

Reimplemented from OpenOrienteering::UndoStep.

◆ loadImpl()

void OpenOrienteering::ObjectCreatingUndoStep::loadImpl	(	QXmlStreamReader &	xml,
		SymbolDictionary &	symbol_dict
	)

overrideprotectedvirtual

Loads undo properties from the the xml stream.

Reimplemented from OpenOrienteering::ObjectModifyingUndoStep.

◆ saveImpl()

void OpenOrienteering::ObjectCreatingUndoStep::saveImpl ( QXmlStreamWriter & xml ) const

overrideprotectedvirtual

Saves undo properties to the the xml stream.

Reimplemented from OpenOrienteering::ObjectModifyingUndoStep.

◆ symbolChanged

void OpenOrienteering::ObjectCreatingUndoStep::symbolChanged	(	int	pos,
		const OpenOrienteering::Symbol *	new_symbol,
		const OpenOrienteering::Symbol *	old_symbol
	)

virtualslot

Adapts the symbol pointers of objects referencing the changed symbol.

◆ symbolDeleted

void OpenOrienteering::ObjectCreatingUndoStep::symbolDeleted	(	int	pos,
		const OpenOrienteering::Symbol *	old_symbol
	)

virtualslot

Invalidates the undo step if a contained object references the deleted symbol.

Member Data Documentation

◆ objects

std::vector<Object*> OpenOrienteering::ObjectCreatingUndoStep::objects

protected

A list of object instance which are currently not part of the map.

◆ valid

bool OpenOrienteering::ObjectCreatingUndoStep::valid

protected

A flag indicating whether this step is still valid.

The documentation for this class was generated from the following files:

src/undo/object_undo.h (f16dd5f on 8 Aug 2019)
src/undo/object_undo.cpp (a4cee00 on 17 Mar 2019)

Public Slots

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ObjectCreatingUndoStep()

◆ ~ObjectCreatingUndoStep()

Member Function Documentation

◆ addObject() [1/3]

◆ addObject() [2/3]

◆ addObject() [3/3]

◆ getModifiedObjects()

◆ isValid()

◆ loadImpl()

◆ saveImpl()

◆ symbolChanged

◆ symbolDeleted

Member Data Documentation

◆ objects

◆ valid
