Helper class with information about parts of paths. More...

#include <object.h>

Inheritance diagram for OpenOrienteering::PathPart:

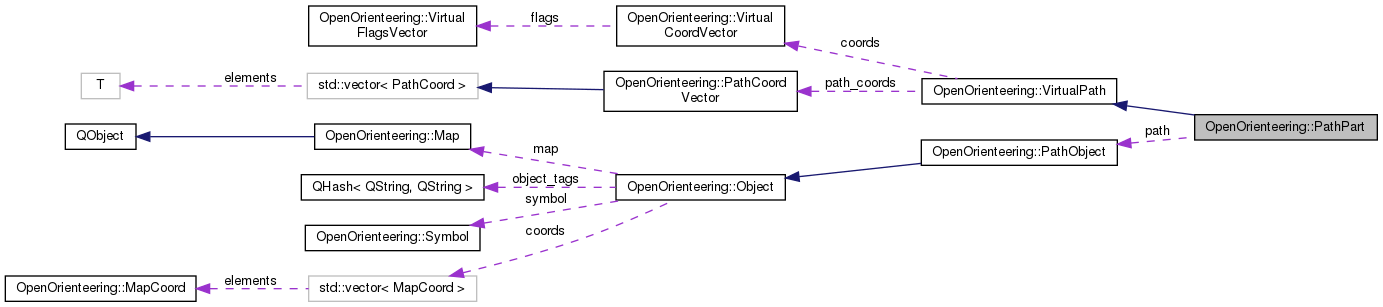

Collaboration diagram for OpenOrienteering::PathPart:

[legend]

Public Member Functions
	PathPart (PathObject &path, MapCoordVector::size_type start_index, MapCoordVector::size_type end_index)

	PathPart (const VirtualCoordVector &coords, MapCoordVector::size_type start_index, MapCoordVector::size_type end_index)

	PathPart (PathObject &path, const VirtualPath &virtual_path)

	~PathPart ()=default

PathPart &	operator= (const PathPart &rhs)

void	setClosed (bool closed, bool may_use_existing_close_point=false)
	Closes or opens the sub-path. More...

void	connectEnds ()
	Closes the subpath, merging the start and end point at their center. More...

void	reverse ()
	Reverses the part's coordinates. More...

Public Member Functions inherited from OpenOrienteering::VirtualPath
	VirtualPath (const MapCoordVector &coords)

	VirtualPath (const MapCoordVector &coords, size_type first, size_type last)

	VirtualPath (const VirtualCoordVector &coords)

	VirtualPath (const VirtualCoordVector &coords, size_type first, size_type last)

	VirtualPath (const MapCoordVector &flags, const MapCoordVectorF &coords)

	VirtualPath (const MapCoordVector &flags, const MapCoordVectorF &coords, size_type first, size_type last)

	VirtualPath (const VirtualPath &)=default

	VirtualPath (VirtualPath &&)=default

bool	empty () const
	Returns true if there are no nodes in this path. More...

size_type	size () const
	Returns the number of coordinates in this path. More...

size_type	countRegularNodes () const
	Calculates the number of regular nodes in this path. More...

bool	isClosed () const
	Returns true if the path is closed. More...

PathCoord::length_type	length () const
	Returns the length of the path. More...

double	calculateArea () const
	Calculates the area of this part. More...

QRectF	calculateExtent () const

bool	intersectsBox (const QRectF &box) const

bool	isPointInside (const MapCoordF &coord) const

PathCoord	findClosestPointTo (MapCoordF coord, float &distance_squared, float distance_bound_squared, size_type start_index, size_type end_index) const

size_type	prevCoordIndex (size_type base_index) const
	Determines the index of the previous regular coordinate. More...

size_type	nextCoordIndex (size_type base_index) const
	Determines the index of the next regular coordinate. More...

MapCoordF	calculateTangent (size_type i) const

std::pair< MapCoordF, double >	calculateTangentScaling (size_type i) const

MapCoordF	calculateTangent (size_type i, bool backward, bool &ok) const
	Calculates the path tangent at the given MapCoord index. More...

MapCoordF	calculateIncomingTangent (size_type i, bool &ok) const
	Similar to calculateTangent(). More...

MapCoordF	calculateOutgoingTangent (size_type i, bool &ok) const
	Similar to calculateTangent(). More...

void	copy (const SplitPathCoord &first, const SplitPathCoord &last, MapCoordVector &out_coords) const

void	copy (const SplitPathCoord &first, const SplitPathCoord &last, MapCoordVector &out_flags, MapCoordVectorF &out_coords) const

void	copyLengths (const SplitPathCoord &first, const SplitPathCoord &last, std::vector< PathCoord::length_type > &out_lengths) const

Static Public Member Functions
static PathPartVector	calculatePathParts (const VirtualCoordVector &coords)

Public Attributes
PathObject *	path = nullptr
	Pointer to path object containing this part. More...

Public Attributes inherited from OpenOrienteering::VirtualPath
VirtualCoordVector	coords
	The underlying coordinates and flags. More...

PathCoordVector	path_coords
	The derived flattened coordinates and meta data. More...

size_type	first_index
	Index of first coordinate of this path in the coords. More...

size_type	last_index
	Index of the last coordinate of this part in the coords. More...

Additional Inherited Members
Public Types inherited from OpenOrienteering::VirtualPath
using	size_type = VirtualCoordVector::size_type
	A reaonably sized unsigned integer type for coord vector sizes and indexes. More...

Protected Member Functions inherited from OpenOrienteering::VirtualPath
VirtualPath &	operator= (const VirtualPath &)=default

VirtualPath &	operator= (VirtualPath &&)=default

Detailed Description

Helper class with information about parts of paths.

A part is a path segment which is separated from other parts by a hole point at its end.

Constructor & Destructor Documentation

◆ PathPart() [1/3]

OpenOrienteering::PathPart::PathPart	(	PathObject &	path,
		MapCoordVector::size_type	start_index,
		MapCoordVector::size_type	end_index
	)

inline

◆ PathPart() [2/3]

OpenOrienteering::PathPart::PathPart	(	const VirtualCoordVector &	coords,
		MapCoordVector::size_type	start_index,
		MapCoordVector::size_type	end_index
	)

inline

◆ PathPart() [3/3]

OpenOrienteering::PathPart::PathPart	(	PathObject &	path,
		const VirtualPath &	virtual_path
	)

◆ ~PathPart()

OpenOrienteering::PathPart::~PathPart ( )

default

Member Function Documentation

◆ calculatePathParts()

PathPartVector OpenOrienteering::PathPart::calculatePathParts ( const VirtualCoordVector & coords )

static

◆ connectEnds()

void OpenOrienteering::PathPart::connectEnds ( )

Closes the subpath, merging the start and end point at their center.

See also: PathPart::setClosed()

◆ operator=()

PathPart & OpenOrienteering::PathPart::operator= ( const PathPart & rhs )

inline

◆ reverse()

void OpenOrienteering::PathPart::reverse ( )

Reverses the part's coordinates.

Reversing the coordinates results in switching the start/end/mid/dash symbol direction for line symbols.

See also: PathObject::reverse()

◆ setClosed()

void OpenOrienteering::PathPart::setClosed	(	bool	closed,
		bool	may_use_existing_close_point = `false`
	)

Closes or opens the sub-path.

If closed == true and may_use_existing_close_point == false, a new point is added as closing point even if its coordinates are identical to the existing last point. Else, the last point may be reused.

Member Data Documentation

◆ path

PathObject* OpenOrienteering::PathPart::path = nullptr

Pointer to path object containing this part.

The documentation for this class was generated from the following files:

src/core/objects/object.h (c0c3bc8 on 7 Oct 2019)
src/core/objects/object.cpp (c0c3bc8 on 7 Oct 2019)
