An abstract tool for editing a map. More...

#include <tool.h>

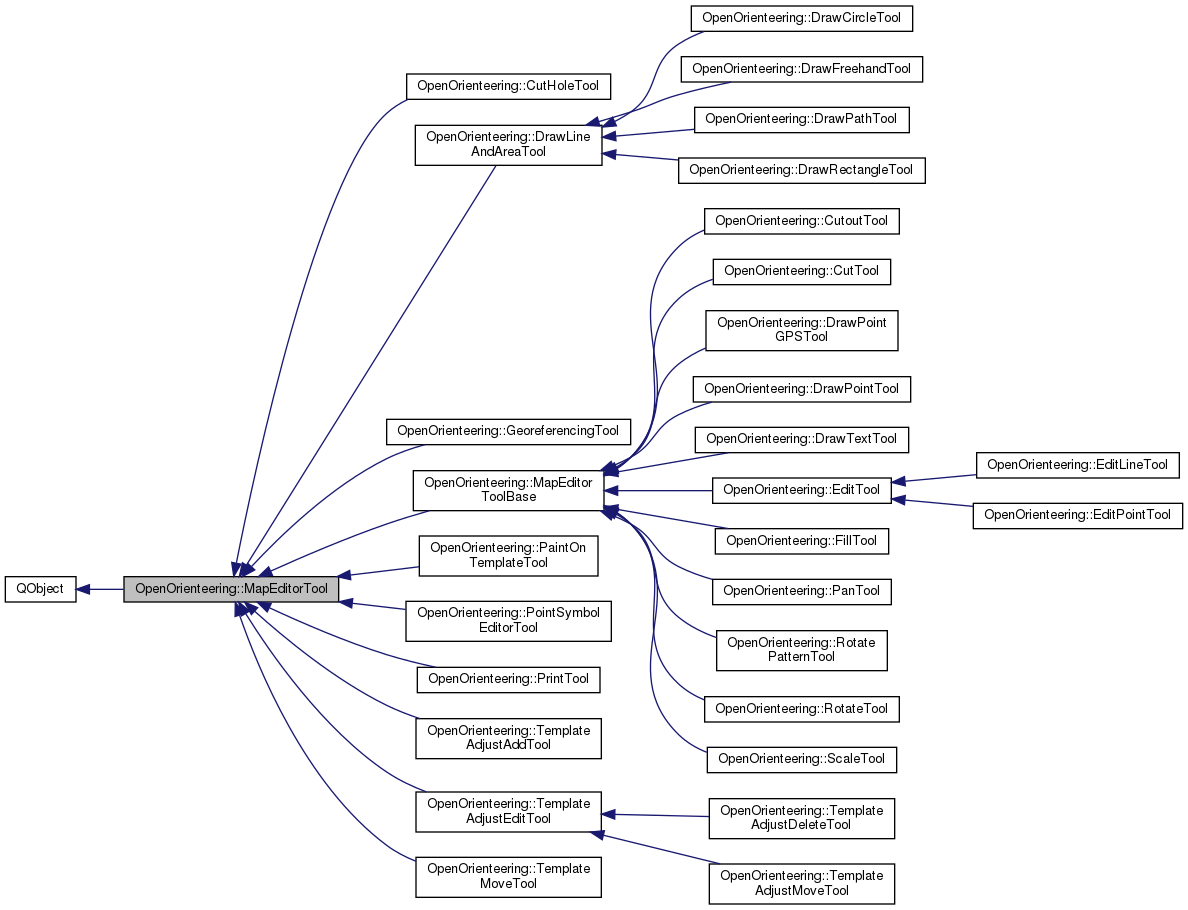

Inheritance diagram for OpenOrienteering::MapEditorTool:

[legend]

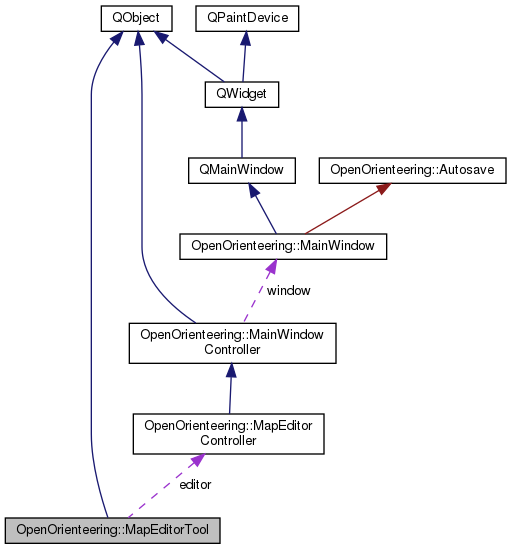

Collaboration diagram for OpenOrienteering::MapEditorTool:

[legend]

Public Types
enum	Type { EditPoint = 1, EditLine = 2, DrawPoint = 3, DrawPath = 4, DrawCircle = 5, DrawRectangle = 6, DrawText = 7, DrawFreehand = 8, Pan = 9, Scribble = 10, Other = 0 }
	Types of tool. More...

Public Member Functions
	MapEditorTool (MapEditorController editor, Type type, QAction tool_action=nullptr)
	Constructs a new MapEditorTool. More...

	~MapEditorTool () override
	Destructs the MapEditorTool. More...

virtual void	init ()
	Performs initialization when the tool becomes active. More...

virtual void	deactivate ()
	Makes this tool inactive in the editor. More...

virtual void	switchToDefaultDrawTool (const Symbol *symbol) const
	Switch to a default draw tool for the given symbol. More...

virtual const QCursor &	getCursor () const =0
	Returns the cursor which should be used for the tool in the editor windows. More...

virtual void	draw (QPainter painter, MapWidget widget)
	Draws the tool's visualisation for a map widget. More...

virtual bool	mousePressEvent (QMouseEvent event, const MapCoordF &map_coord, MapWidget widget)

virtual bool	mouseMoveEvent (QMouseEvent event, const MapCoordF &map_coord, MapWidget widget)

virtual bool	mouseReleaseEvent (QMouseEvent event, const MapCoordF &map_coord, MapWidget widget)

virtual bool	mouseDoubleClickEvent (QMouseEvent event, const MapCoordF &map_coord, MapWidget widget)

virtual void	leaveEvent (QEvent *event)

virtual bool	keyPressEvent (QKeyEvent *event)

virtual bool	keyReleaseEvent (QKeyEvent *event)

virtual void	focusOutEvent (QFocusEvent *event)

virtual bool	inputMethodEvent (QInputMethodEvent *event)

virtual QVariant	inputMethodQuery (Qt::InputMethodQuery property, const QVariant &argument) const

virtual bool	gestureEvent (QGestureEvent event, MapWidget widget)

virtual void	gestureStarted ()
	This is called to signal the start of a gesture. More...

Type	toolType () const
	Returns the type of this tool. More...

QAction *	toolAction () const
	Returns the action which represents this tool. More...

bool	usesTouchCursor () const
	Returns whether to use the touch helper cursor for this tool. More...

Map *	map () const
	Returns the map being edited. More...

MapWidget *	mapWidget () const
	Returns the map widget being operated on. More...

MainWindow *	mainWindow () const
	Returns the main window the controller is attached to. More...

QWidget *	window () const
	Returns the main window the controller is attached to as a QWidget. More...

bool	drawOnRightClickEnabled () const
	Returns true if Mapper is configured to finish drawing on right click. More...

bool	editingInProgress () const
	Returns whether an editing operation is currently in progress. More...

virtual void	finishEditing ()
	Finishes editing if it is currently in progress. More...

bool	isDrawTool () const
	Returns true if the given tool is for drawing new objects. More...

const PointHandles &	pointHandles () const
	Returns the point handles utility for this tool. More...

unsigned int	scaleFactor () const
	The factor by which all drawing shall be scaled. More...

qreal	clickTolerance () const
	A value representing how close the user must click or hover to select a point. More...

int	startDragDistance () const
	The number of pixels the mouse has to be moved to start dragging. More...

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Static Public Attributes
static const QRgb	inactive_color = qRgb(0, 0, 255)
	Color for normal (not active) elements. More...

static const QRgb	active_color = qRgb(255, 150, 0)
	Color for active elements (which are hovered over by the cursor) More...

static const QRgb	selection_color = qRgb(210, 0, 229)
	Color for selected elements. More...

Protected Member Functions
void	useTouchCursor (bool enabled)
	Sets the flag which indicates whether the touch cursor shall be used. More...

void	setEditingInProgress (bool state)
	Sets a flag which indicates an active editing operation. More...

void	setStatusBarText (const QString &text)
	Sends text to the window's status bar. More...

void	drawSelectionBox (QPainter painter, MapWidget widget, const MapCoordF &corner1, const MapCoordF &corner2) const
	Draws a selection box for the given corner points. More...

MapCoordVector::size_type	findHoverPoint (const QPointF &cursor, const MapWidget widget, const Object object, bool include_curve_handles, MapCoordF *out_handle_pos=nullptr) const
	Finds and returns the point of the given object over which the cursor hovers. More...

bool	containsDrawingButtons (Qt::MouseButtons buttons) const
	Checks if the given buttons contain one which controls drawing. More...

bool	isDrawingButton (Qt::MouseButton button) const
	Checks if the given event was triggered by press or release of a mouse button for drawing. More...

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Static Protected Member Functions
static QCursor	scaledToScreen (const QCursor &unscaled_cursor)
	Returns a cursor which is scaled to the screen's resolution. More...

Protected Attributes
MapEditorController *const	editor
	The map editor which uses this tool. More...

Additional Inherited Members
Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Public Attributes inherited from QObject
typedef	QObjectList

Properties inherited from QObject
	objectName

Detailed Description

An abstract tool for editing a map.

A map editor tool uses mouse and key input to modify a map.

The given tool_button is unchecked when the tool is destroyed.

When deriving from MapEditorTool, do not make changes on the map editor or window (e.g. status bar text) in the constructor. Another tool might still be active at that point in time! Instead, reimplement the init() method.

This class provides a general but cumbersome interface. If you want to write a simple tool and can live with some limitations, consider using MapEditorToolBase instead.

Member Enumeration Documentation

◆ Type

enum OpenOrienteering::MapEditorTool::Type

Types of tool.

Enumerator
EditPoint
EditLine
DrawPoint
DrawPath
DrawCircle
DrawRectangle
DrawText
DrawFreehand
Pan
Scribble
Other

Constructor & Destructor Documentation

◆ MapEditorTool()

OpenOrienteering::MapEditorTool::MapEditorTool	(	MapEditorController *	editor,
		Type	type,
		QAction *	tool_action = `nullptr`
	)

Constructs a new MapEditorTool.

Parameters

editor	The MapEditorController in which the tool is used.
type	The type of the tool. It is safe to use Other if it is not necessary to query for this type somewhere.
tool_action	Optional button which will be unchecked on destruction of this tool.

◆ ~MapEditorTool()

OpenOrienteering::MapEditorTool::~MapEditorTool ( )

override

Destructs the MapEditorTool.

Member Function Documentation

◆ clickTolerance()

qreal OpenOrienteering::MapEditorTool::clickTolerance ( ) const

inline

A value representing how close the user must click or hover to select a point.

◆ containsDrawingButtons()

bool OpenOrienteering::MapEditorTool::containsDrawingButtons ( Qt::MouseButtons buttons ) const

protected

Checks if the given buttons contain one which controls drawing.

To be used for mouse move events.

◆ deactivate()

void OpenOrienteering::MapEditorTool::deactivate ( )

virtual

Makes this tool inactive in the editor.

Remplementations shall call parent implementations.

This implementation will always schedule the tool's deletion. But marking the tool's action as not checked is left to the destructor

◆ draw()

void OpenOrienteering::MapEditorTool::draw	(	QPainter *	painter,
		MapWidget *	widget
	)

virtual

Draws the tool's visualisation for a map widget.

All dynamic drawing must be done here using the given painter. Drawing is only possible in the area specified by calling map->setDrawingBoundingBox().

Reimplemented in OpenOrienteering::TemplateAdjustAddTool, OpenOrienteering::TemplateAdjustEditTool, OpenOrienteering::MapEditorToolBase, OpenOrienteering::PrintTool, OpenOrienteering::PaintOnTemplateTool, OpenOrienteering::CutHoleTool, OpenOrienteering::DrawPathTool, OpenOrienteering::DrawRectangleTool, OpenOrienteering::DrawFreehandTool, and OpenOrienteering::DrawCircleTool.

◆ drawOnRightClickEnabled()

bool OpenOrienteering::MapEditorTool::drawOnRightClickEnabled ( ) const

inline

Returns true if Mapper is configured to finish drawing on right click.

◆ drawSelectionBox()

void OpenOrienteering::MapEditorTool::drawSelectionBox	(	QPainter *	painter,
		MapWidget *	widget,
		const MapCoordF &	corner1,
		const MapCoordF &	corner2
	)		const

protected

Draws a selection box for the given corner points.

A selection box is drawn while selecting objects by dragging.

◆ editingInProgress()

bool OpenOrienteering::MapEditorTool::editingInProgress ( ) const

inline

Returns whether an editing operation is currently in progress.

Some editing operation, such as drawing a path, need several user inputs over some period of time. This flag indicates that such an operation is currently active, limiting the number of other actions which may be triggered in this time.

Returns: Returns true if there is an ongoing edition operation, false otherwise.

◆ findHoverPoint()

MapCoordVector::size_type OpenOrienteering::MapEditorTool::findHoverPoint	(	const QPointF &	cursor,
		const MapWidget *	widget,
		const Object *	object,
		bool	include_curve_handles,
		MapCoordF *	out_handle_pos = `nullptr`
	)		const

protected

Finds and returns the point of the given object over which the cursor hovers.

Returns no_point if not hovering over a point.

◆ finishEditing()

void OpenOrienteering::MapEditorTool::finishEditing ( )

virtual

Finishes editing if it is currently in progress.

Deriving functions shall call this class' implementation (which calls setEditingInProgress(false)).

Reimplemented in OpenOrienteering::MapEditorToolBase, OpenOrienteering::EditPointTool, OpenOrienteering::CutoutTool, OpenOrienteering::DrawTextTool, OpenOrienteering::CutHoleTool, and OpenOrienteering::DrawLineAndAreaTool.

◆ focusOutEvent()

void OpenOrienteering::MapEditorTool::focusOutEvent ( QFocusEvent * event )

virtual

Reimplemented in OpenOrienteering::EditPointTool, OpenOrienteering::CutTool, and OpenOrienteering::CutHoleTool.

◆ gestureEvent()

bool OpenOrienteering::MapEditorTool::gestureEvent	(	QGestureEvent *	event,
		MapWidget *	widget
	)

virtual

◆ gestureStarted()

void OpenOrienteering::MapEditorTool::gestureStarted ( )

virtual

This is called to signal the start of a gesture.

Tools may reimplement this if they want to cancel ongoing interactions such as dragging.

Reimplemented in OpenOrienteering::MapEditorToolBase.

◆ getCursor()

virtual const QCursor& OpenOrienteering::MapEditorTool::getCursor ( ) const

pure virtual

Returns the cursor which should be used for the tool in the editor windows.

Todo:: How to change the cursor for all map widgets while a tool is active?

◆ init()

void OpenOrienteering::MapEditorTool::init ( )

virtual

Performs initialization when the tool becomes active.

This method is called by the map editor when the tool shall become active. Reimplementations may make changes to the map editor or window (e.g. set status bar text) which are not allowed in the constructor.

Note that this method by call several times, without any deinitialization in between.

Reimplementations shall call parent implementations.

The implementation in this class marks the tool's action as checked.

◆ inputMethodEvent()

bool OpenOrienteering::MapEditorTool::inputMethodEvent ( QInputMethodEvent * event )

virtual

Reimplemented in OpenOrienteering::EditPointTool, and OpenOrienteering::DrawTextTool.

◆ inputMethodQuery()

QVariant OpenOrienteering::MapEditorTool::inputMethodQuery	(	Qt::InputMethodQuery	property,
		const QVariant &	argument
	)		const

virtual

Reimplemented in OpenOrienteering::EditPointTool, and OpenOrienteering::DrawTextTool.

◆ isDrawingButton()

bool OpenOrienteering::MapEditorTool::isDrawingButton ( Qt::MouseButton button ) const

protected

Checks if the given event was triggered by press or release of a mouse button for drawing.

To be used for press and release events.

◆ isDrawTool()

bool OpenOrienteering::MapEditorTool::isDrawTool ( ) const

Returns true if the given tool is for drawing new objects.

Todo:: This shall be rewritten as virtual/reimplemented function.

◆ keyPressEvent()

bool OpenOrienteering::MapEditorTool::keyPressEvent ( QKeyEvent * event )

virtual

Reimplemented in OpenOrienteering::TemplateAdjustAddTool, OpenOrienteering::MapEditorToolBase, OpenOrienteering::CutHoleTool, OpenOrienteering::DrawPathTool, OpenOrienteering::DrawRectangleTool, OpenOrienteering::DrawFreehandTool, OpenOrienteering::ScaleTool, OpenOrienteering::DrawCircleTool, and OpenOrienteering::RotatePatternTool.

◆ keyReleaseEvent()

bool OpenOrienteering::MapEditorTool::keyReleaseEvent ( QKeyEvent * event )

virtual

Reimplemented in OpenOrienteering::MapEditorToolBase, OpenOrienteering::CutHoleTool, OpenOrienteering::DrawPathTool, OpenOrienteering::DrawRectangleTool, OpenOrienteering::ScaleTool, and OpenOrienteering::RotatePatternTool.

◆ leaveEvent()

void OpenOrienteering::MapEditorTool::leaveEvent ( QEvent * event )

virtual

Reimplemented in OpenOrienteering::DrawTextTool, OpenOrienteering::DrawPointTool, OpenOrienteering::CutTool, OpenOrienteering::CutHoleTool, and OpenOrienteering::DrawLineAndAreaTool.

◆ mainWindow()

MainWindow * OpenOrienteering::MapEditorTool::mainWindow ( ) const

Returns the main window the controller is attached to.

◆ map()

Map * OpenOrienteering::MapEditorTool::map ( ) const

Returns the map being edited.

◆ mapWidget()

MapWidget * OpenOrienteering::MapEditorTool::mapWidget ( ) const

Returns the map widget being operated on.

◆ mouseDoubleClickEvent()

bool OpenOrienteering::MapEditorTool::mouseDoubleClickEvent	(	QMouseEvent *	event,
		const MapCoordF &	map_coord,
		MapWidget *	widget
	)

virtual

Reimplemented in OpenOrienteering::CutTool, OpenOrienteering::CutHoleTool, OpenOrienteering::DrawPathTool, and OpenOrienteering::DrawRectangleTool.

◆ mouseMoveEvent()

bool OpenOrienteering::MapEditorTool::mouseMoveEvent	(	QMouseEvent *	event,
		const MapCoordF &	map_coord,
		MapWidget *	widget
	)

virtual

◆ mousePressEvent()

bool OpenOrienteering::MapEditorTool::mousePressEvent	(	QMouseEvent *	event,
		const MapCoordF &	map_coord,
		MapWidget *	widget
	)

virtual

◆ mouseReleaseEvent()

bool OpenOrienteering::MapEditorTool::mouseReleaseEvent	(	QMouseEvent *	event,
		const MapCoordF &	map_coord,
		MapWidget *	widget
	)

virtual

◆ pointHandles()

const PointHandles& OpenOrienteering::MapEditorTool::pointHandles ( ) const

inline

Returns the point handles utility for this tool.

◆ scaledToScreen()

QCursor OpenOrienteering::MapEditorTool::scaledToScreen ( const QCursor & unscaled_cursor )

staticprotected

Returns a cursor which is scaled to the screen's resolution.

Return standard cursor shapes unchanged, but scales pixmap cursors from (default) 96 dpi to the screen's physical dpi (according to the settings) if the difference is significant.

◆ scaleFactor()

unsigned int OpenOrienteering::MapEditorTool::scaleFactor ( ) const

inline

The factor by which all drawing shall be scaled.

See also: PointHandles::scaleFactor()

◆ setEditingInProgress()

void OpenOrienteering::MapEditorTool::setEditingInProgress ( bool state )

protected

Sets a flag which indicates an active editing operation.

This function takes care of informing the MapEditorController about the change.

See also: editingInProgress()

◆ setStatusBarText()

void OpenOrienteering::MapEditorTool::setStatusBarText ( const QString & text )

protected

Sends text to the window's status bar.

◆ startDragDistance()

int OpenOrienteering::MapEditorTool::startDragDistance ( ) const

inline

The number of pixels the mouse has to be moved to start dragging.

◆ switchToDefaultDrawTool()

void OpenOrienteering::MapEditorTool::switchToDefaultDrawTool ( const Symbol * symbol ) const

virtual

Switch to a default draw tool for the given symbol.

Makes this tool inactive and schedules its deletion.

Todo:: Review for refactoring: no reimplementation found, maybe not in right class?

◆ toolAction()

QAction* OpenOrienteering::MapEditorTool::toolAction ( ) const

inline

Returns the action which represents this tool.

◆ toolType()

Type OpenOrienteering::MapEditorTool::toolType ( ) const

inline

Returns the type of this tool.

◆ usesTouchCursor()

bool OpenOrienteering::MapEditorTool::usesTouchCursor ( ) const

inline

Returns whether to use the touch helper cursor for this tool.

◆ useTouchCursor()

void OpenOrienteering::MapEditorTool::useTouchCursor ( bool enabled )

protected

Sets the flag which indicates whether the touch cursor shall be used.

See also: usesTouchCursor()

◆ window()

QWidget * OpenOrienteering::MapEditorTool::window ( ) const

Returns the main window the controller is attached to as a QWidget.

This function can be used without the need to include main_window.h.

Member Data Documentation

◆ active_color

const QRgb OpenOrienteering::MapEditorTool::active_color = qRgb(255, 150, 0)

static

Color for active elements (which are hovered over by the cursor)

◆ editor

MapEditorController* const OpenOrienteering::MapEditorTool::editor

protected

The map editor which uses this tool.

◆ inactive_color

const QRgb OpenOrienteering::MapEditorTool::inactive_color = qRgb(0, 0, 255)

static

Color for normal (not active) elements.

◆ selection_color

const QRgb OpenOrienteering::MapEditorTool::selection_color = qRgb(210, 0, 229)

static

Color for selected elements.

The documentation for this class was generated from the following files:

src/tools/tool.h (7e82614 on 2 May 2019)
src/tools/tool.cpp (e864e54 on 26 Aug 2018)

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Type

Constructor & Destructor Documentation

◆ MapEditorTool()

◆ ~MapEditorTool()

Member Function Documentation

◆ clickTolerance()

◆ containsDrawingButtons()

◆ deactivate()

◆ draw()

◆ drawOnRightClickEnabled()

◆ drawSelectionBox()

◆ editingInProgress()

◆ findHoverPoint()

◆ finishEditing()

◆ focusOutEvent()

◆ gestureEvent()

◆ gestureStarted()

◆ getCursor()

◆ init()

◆ inputMethodEvent()

◆ inputMethodQuery()

◆ isDrawingButton()

◆ isDrawTool()

◆ keyPressEvent()

◆ keyReleaseEvent()

◆ leaveEvent()

◆ mainWindow()

◆ map()

◆ mapWidget()

◆ mouseDoubleClickEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ pointHandles()

◆ scaledToScreen()

◆ scaleFactor()

◆ setEditingInProgress()

◆ setStatusBarText()

◆ startDragDistance()

◆ switchToDefaultDrawTool()

◆ toolAction()

◆ toolType()

◆ usesTouchCursor()

◆ useTouchCursor()

◆ window()

Member Data Documentation

◆ active_color

◆ editor

◆ inactive_color

◆ selection_color
